CADEC+ PRO
₹400,000.00
CADEC+ PRO
Champion 3D CAD users who have created a variety of 3D models and drawings for the same product with different specifications
They can become productive and innovative if their repetitive tasks are automated by CADEC+ Pro.

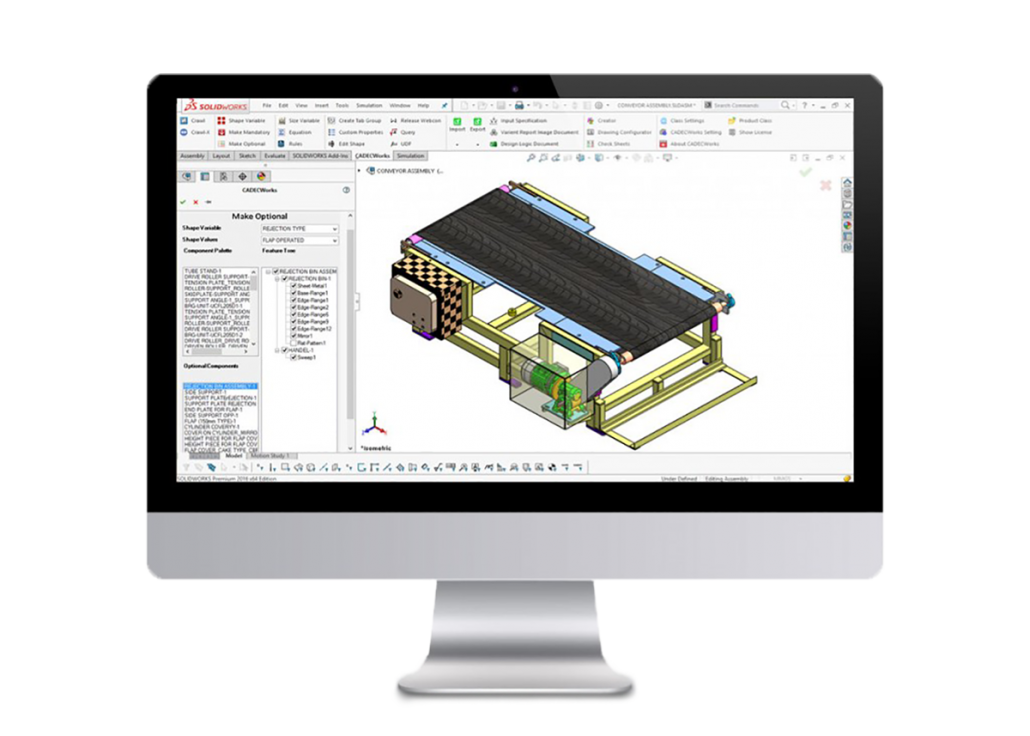

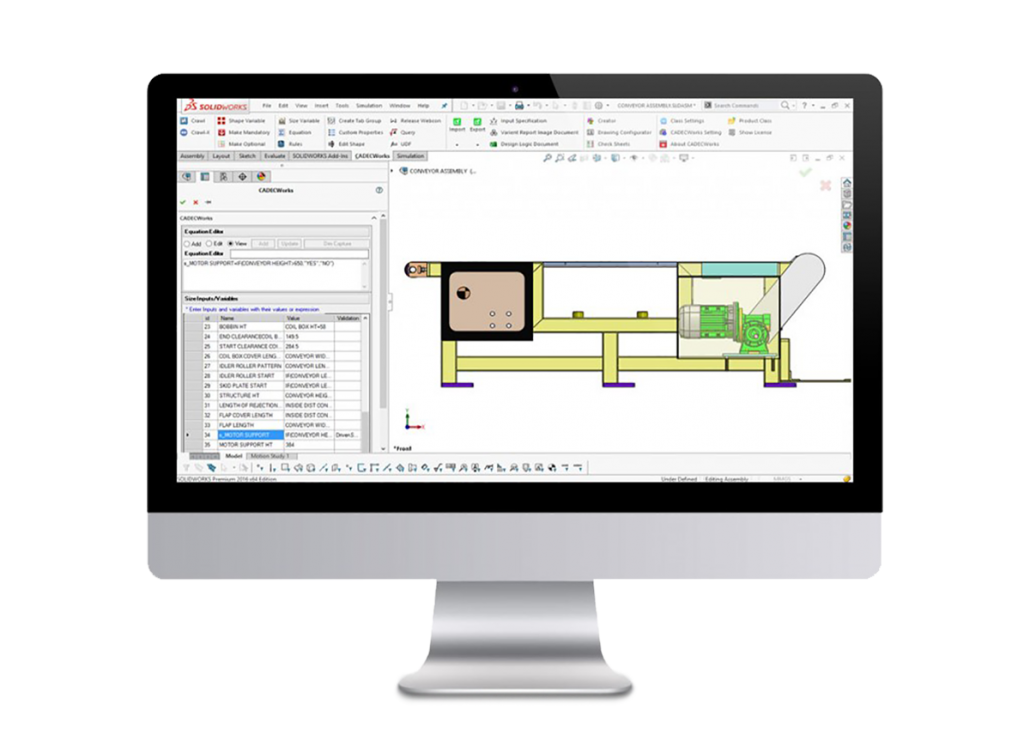

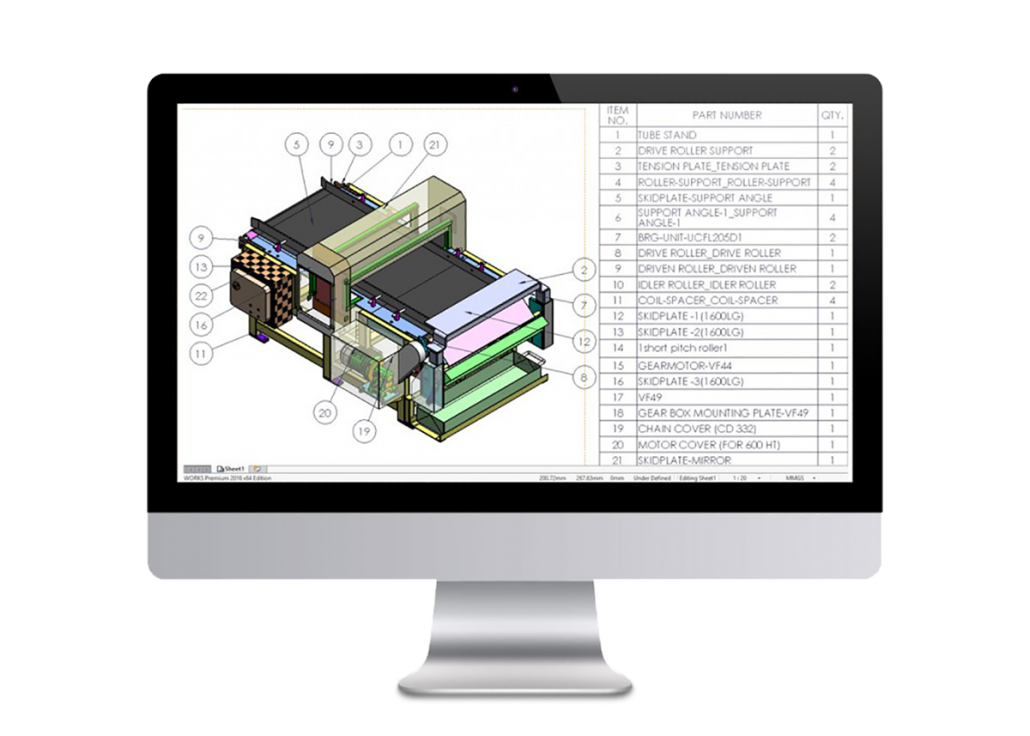

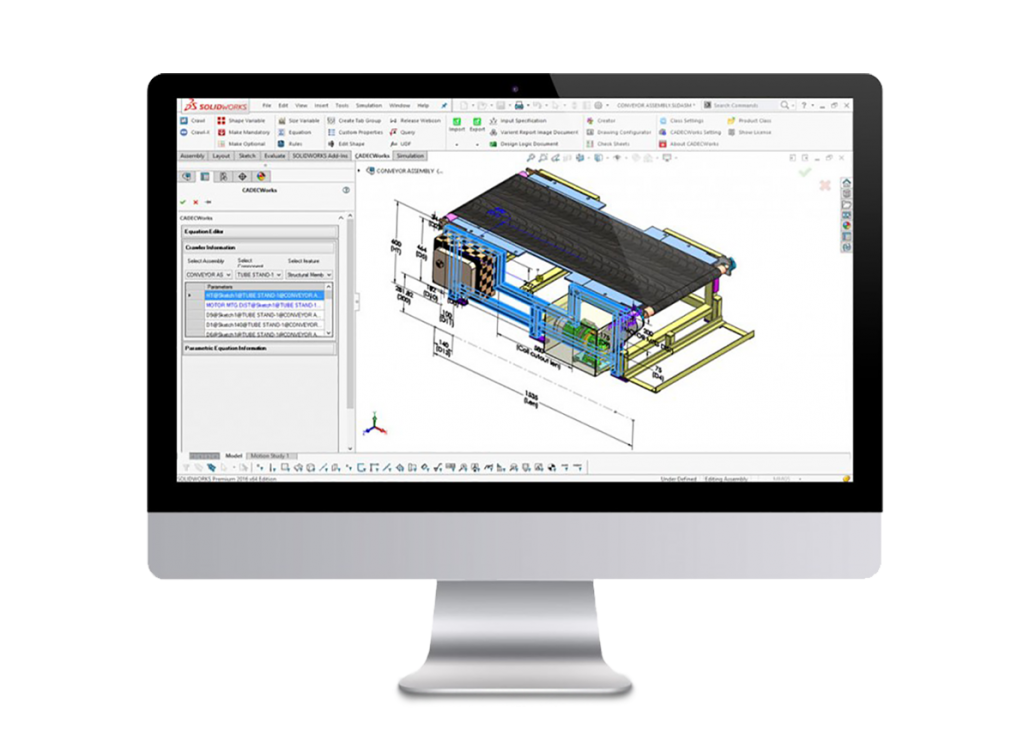

CADEC+ Pro is a Design Automation Tool. with CADEC+ Pro champion designers can create Design automation applications for his/her product to generate validated 3D Models and 2D drawings at a glance without any programming knowledge.
Description
Functionality:

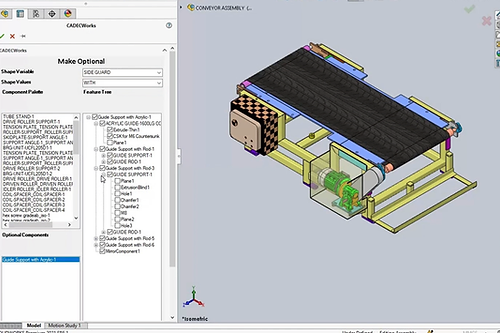

- Geometry configuration
- Complex Design Logic i.e formulae, statements, look-up, series, user-defined functions

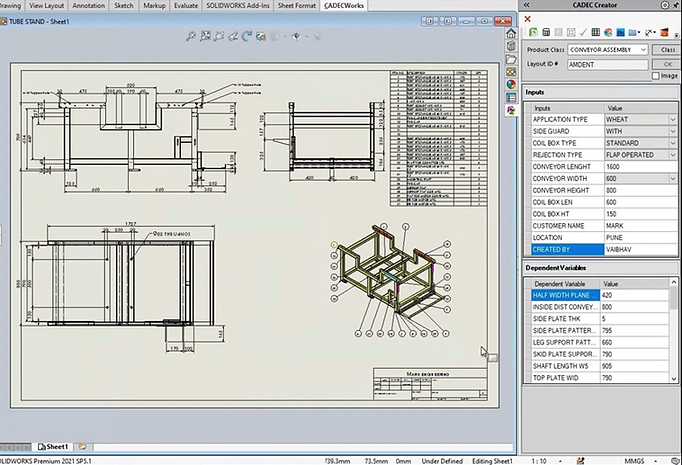

- Drawing configuration
- Custom property configuration
- Custom UI
- Secure access
- Compatible with Webcon (Web configurator)
How to Implement:
Follow 5 simple steps to automate your design process for the desired product.
- Identify design variables in your product.
- Create a Master Model having all variable parameters i.e. features, Parts, Assembly, and Dimensions. Create Master Drawing
- Define your design logic, formulae, a lookup table with respective your variables
- Link variables to model parameters

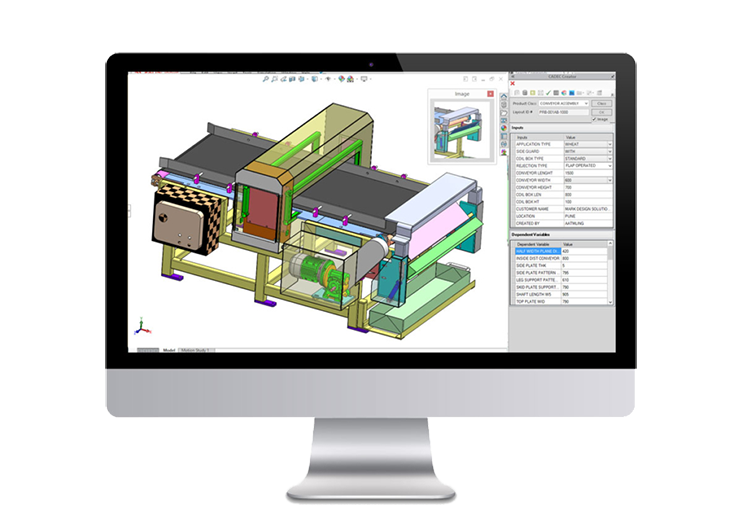

- Generate output by giving input variable values.
Additional information
| Delivery: | 7 days max. |
|---|---|
| Cost & Licensing : | The above cost includes 1 stand-alone or floating License with one year of support and training. License Validity: Perpetual |
